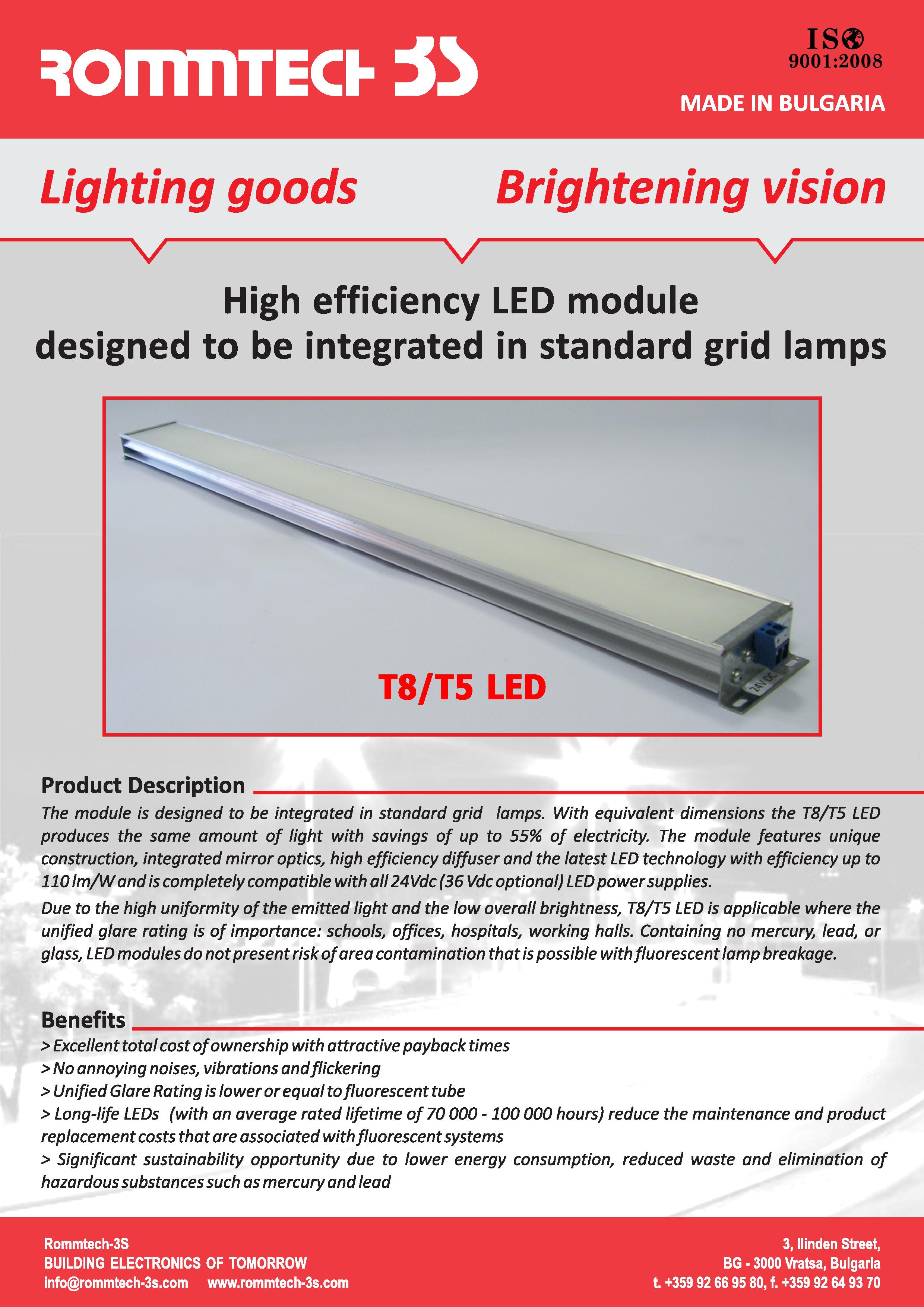

Product Description

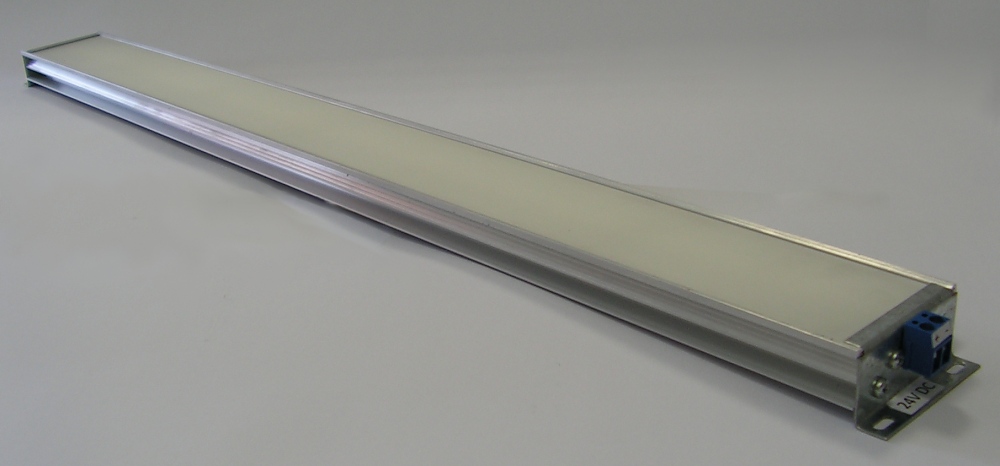

The module is designed to be integrated in standard grid lamps. With equivalent dimensions the T8/T5 LED produces the same amount of light with savings of up to 55% of electricity. The module features unique construction, integrated mirror optics, high efficiency diffuser and the latest LED technology with efficiency up to 110 lm/W and is completely compatible with all 24Vdc (36 Vdc optional) LED power supplies.
Due to the high uniformity of the emitted light and the low overall brightness, T8/T5 LED is applicable where the unified glare rating is of importance: schools, offices, hospitals, working halls. Containing no mercury, lead, or glass, LED modules do not present risk of area contamination that is possible with fluorescent lamp breakage.


  • Excellent total cost of ownership with attractive payback times
  • No annoying noises, vibrations and flickering
  • Unified Glare Rating is lower or equal to fluorescent tube
  • Long-life LEDs (with an average rated lifetime of 70 000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses.
  • 100% efficiency - directed light which guarantees that all of the luminosity goes where you need it

Technical Specification:

T8/T5LED 10W &20W 25W
General Characteristics
LED manufacturer   OSRAM
Housing Anodized aluminium, mirror optics, diffuser
Life to 70% lumen maintenance   70 000 - 100 000 hr
Operating temperature   -30 - +40°C
Electrical Characteristics
Equivalent to fluorescent tube T5/T8  14 W/ 18 W 28 W/ 36 W ;35 W/ 58 W
Type of power source (not included) Constant Voltage 24 ±1 Vdc
Power connection    2-way screw terminal
   Light characteristics
Color temperature 2700, 3000, 3500, 4000, 4500 or 5000 °C
Color rendering index   CRI > 80
Luminous flux 900 - 1100 lm 1800 - 2200 lm 2300 - 2800 lm
Product Dimensions
;Length 555 mm 1100 mm 1400 mm
Width/ height   50x25 mm
Weight 0,3 kg 0,6 kg 0,75 kg

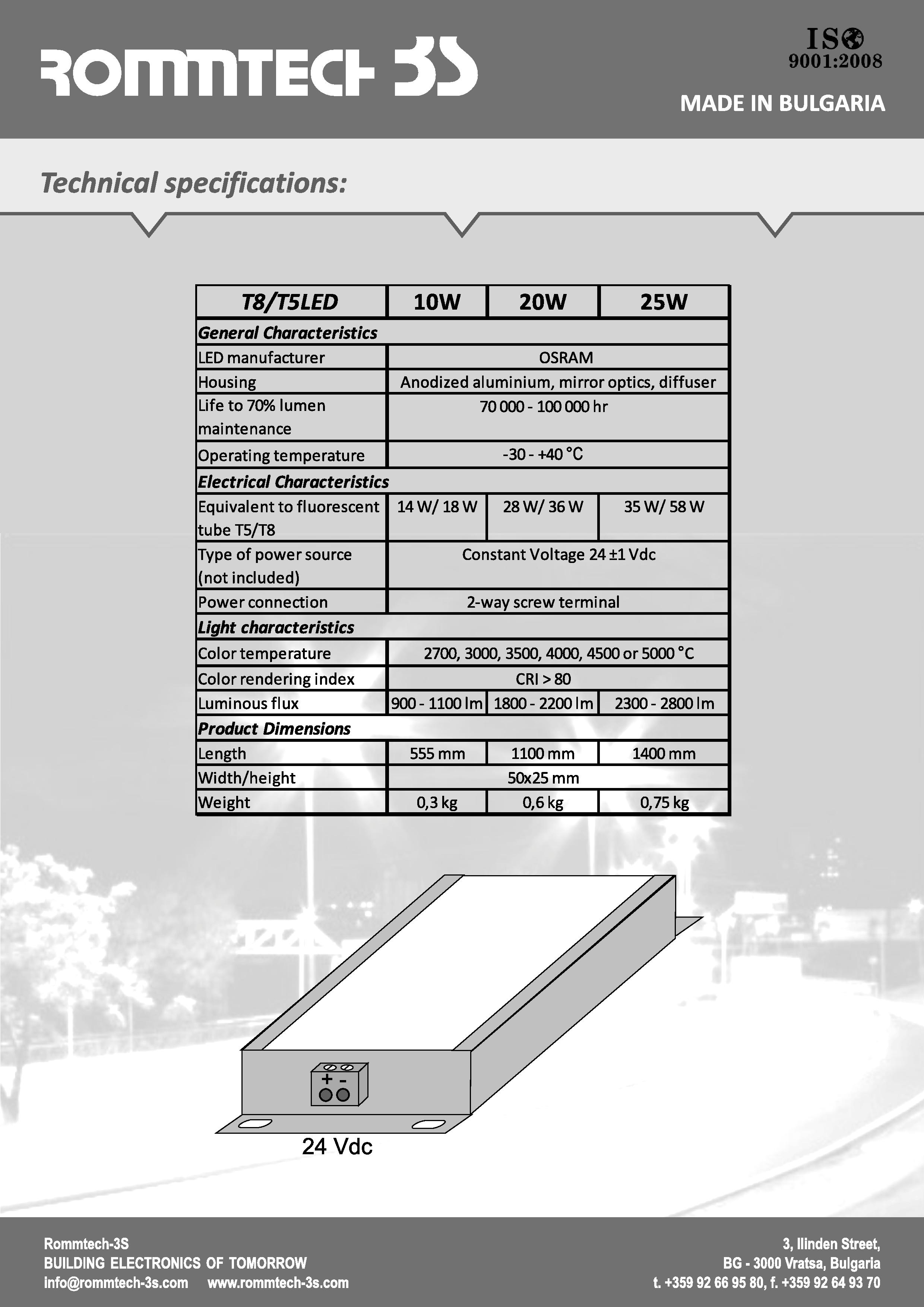

Technical specifications
