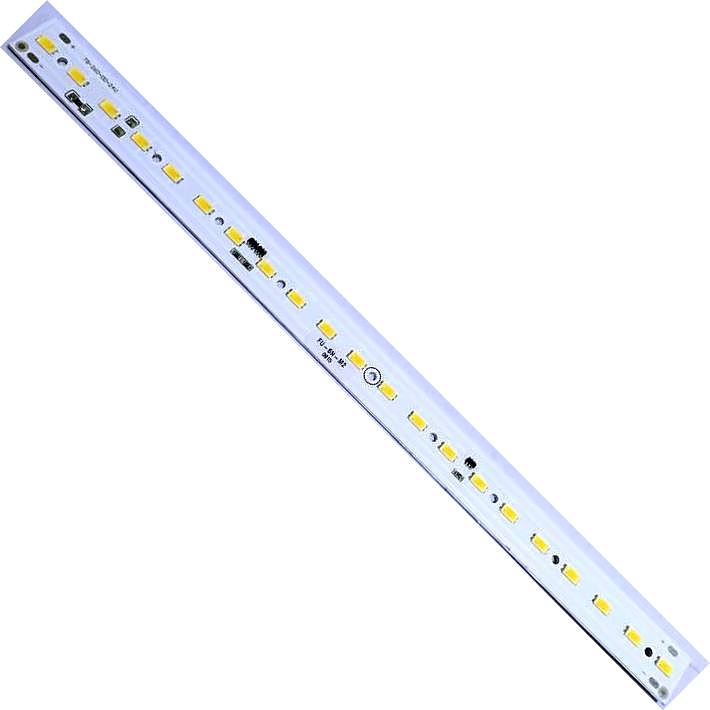

T8-260 OD


   T8-260OD module with LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed on aluminium plate for best heat dissipation and for use in planar luminaires. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 159 lm/W. There are two modules in this family - for constant voltage that guarantees low flickering index at 24VDC with additional DC/DC current driver and module driven by constant current with higher efficiency. The 24VDC module can be adjusted to custom power through the DC/DC driver. It is designed to be in a line with several others connected in parallel.

 Benefits:

  • Ideal for linear and panel lights
  • Luminous flux range from 540lm – 1040 lm
  • Efficacy of the module up to 159 lm/W
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 2700 K to 6500 K
  • Good uniform light, when several LED modules are used together in a line
  • Long life-time: >50,000 hours
  • Module for constant voltage with low flickering index
  • Module for constant current for higher efficacy
  • Simple installation (e.g. screws)

Technical Specification:

T8-260 OD

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj =25 °C

Typ. power consumption
at tj = 25 °C

Luminous efficacy module
at tj = 25 °C

Colour rendering index
CRI

Operating mode High Efficiency
at constant voltage 24VDC
flickering <0.2%

3000 K

592 Lm

24 V

5 W

118 Lm/W

>80

4000 K

617 Lm

24 V

5 W

123 Lm/W

>80

5000 K

630 Lm

24 V

5 W

126 Lm/W

>80

Operating mode High Output
at constantvoltage 24VDC
flickering <0.2%

3000 K

831 Lm

24 V

7.2 W

115 Lm/W

>80

4000 K

867 Lm

24 V

7.2 W

120 Lm/W

>80

5000 K

885 Lm

24 V

7.2 W

123 Lm/W

>80

Operating mode High Efficiency
at constant current175mA

3000 K

529 Lm

20.3V

3.55 W

149 Lm/W

>80

4000 K

554 Lm

20.3V

3.55 W

156 Lm/W

>80

5000 K

565 Lm

20.3 V

3.55 W

159 Lm/W

>80

Operating mode High Output
at constant current350mA

3000 K

988 Lm

22 V

7.7 W

128 Lm/W

>80

4000 K

1032 Lm

22 V

7.7 W

134 Lm/W

>80

5000 K

1047 Lm

22 V

7.7 W

136 Lm/W

>80
