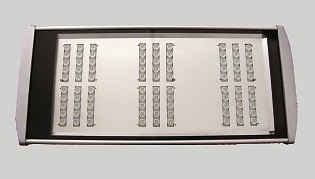

Street/residential luminaire Model LCV100

The LCV100 is the smaller "brother" of LCV200. LCV100 delivers high-quality uniform illumination while maximizing lumen output. Far more energy efficient than halogen, incandescent and fluorescent lamps, LCV100 is also more reliable and can save up to 85% in energy, replacement and maintenance costs annually. As LCV200 this model has latest LED technology with high efficacy - up to 130Lm/W, and it is equiped with one of world`s best lenses- Strada.

According to your needs LCV100 comes with custom lenses - for residential area (e.g. 55 degree round), for area flood lighting (15 degree narrow lens) or according to the customers area and minimum amount of light needed.


  • Good symetrical looks
  • No annoying noises, vibrations and flickering
  • Long-life LEDs  (with an average rated lifetime of 70,000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Custom illuminated area
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses
  • 100% efficacy - directed light which guarantees that all the luminosity goes where is needed
  • Push-in connector: connection without opening the luminaire

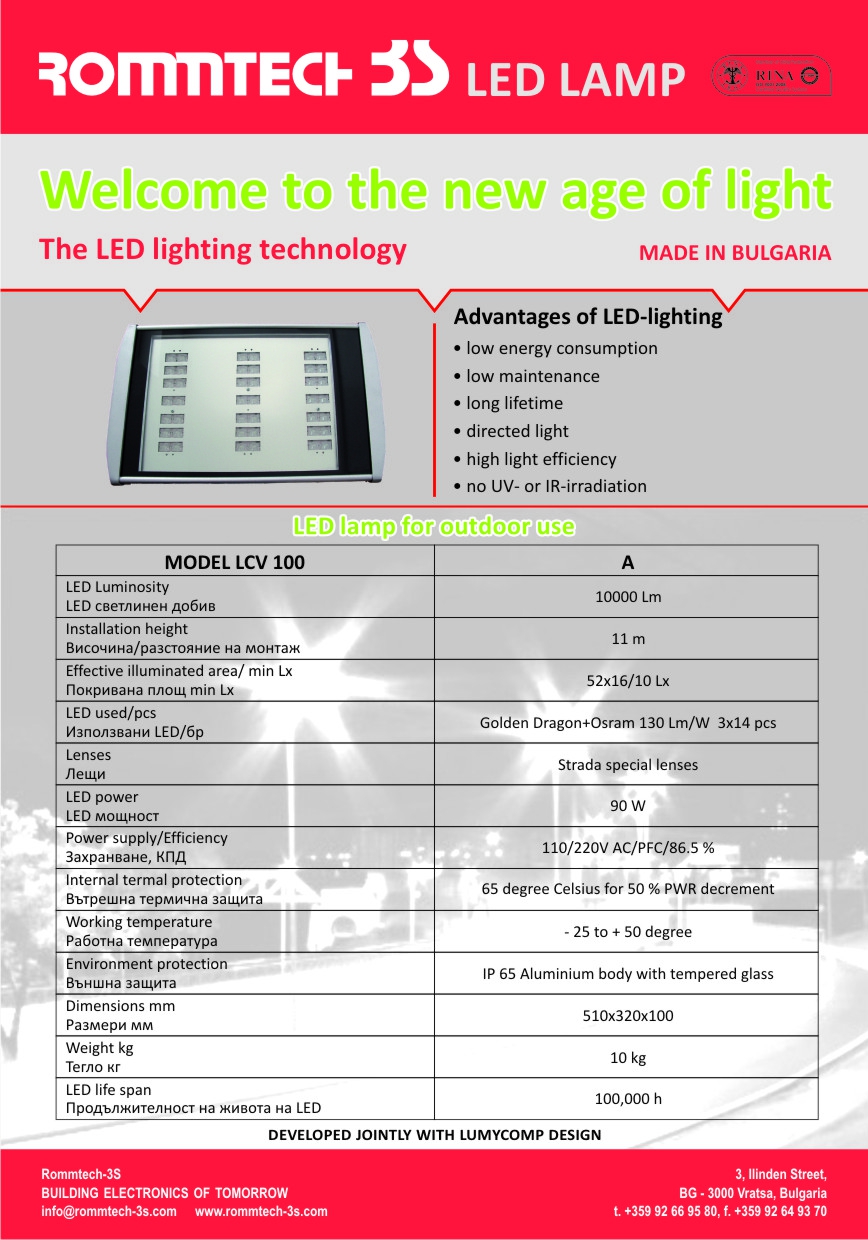

Technical Specification:

General Characteristics
LED chip manufacturer Osram
Housing Aluminium / powder coated steel
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000hr
Operating temperature -25 - +50 °C
Ingress protection IP 65
Electrical Characteristics
Wattage 90 W
Type of power supply 110/230 Vac with PFC and eff. 90%
Light characteristics
Color rendering index CRI ≥ 70
;Luminous flux 10000 lm
Product Dimensions
Width/length/height 510x320x100 mm
Weight 10 kg
