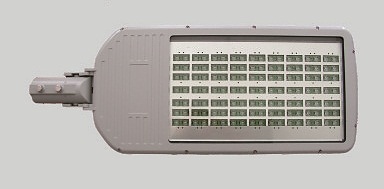

Road/residential luminaire Model 209

 A city needs light, not luminaires. Architects, urban planners, municipalities… all need to have the required lighting levels to ensure citizens’ safety and well-being, but without cluttering the sidewalks and piazzas.The LED fixture 209 provides them with a smart, efficient, future-proof solution. Because of its big luminous flux you can reduce the amaunt of poles on the sidewalks and piazzas. With the highly efficient Osram LEDs you acheave up to 55% lower energy costs and because of the long life of the light emitting diodes you need almost no maintanance. Model 209 comes with two types of lenses - "street butterfly" - for road ilumination or with round - for residential area illumination. The color temperature and illuminated area can be customised.


  • A great amount of light on a single pole
  • No annoying noises, vibrations and flickering
  • Long-life LEDs  (with an average rated lifetime of 70,000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Custom illuminated area
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses
  • 100% efficacy - directed light which guarantees that all the luminosity goes where is needed
  • Push-in connector: connection without opening the luminaire

Technical Specification:

General Characteristics
LED chip manufacturer Osram Oslon
Housing Aluminium / powder coated steel
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000hr
Operating temperature -25 - +40 °C
Ingress protection IP 65
Electrical Characteristics
Wattage 180 W
Type of power supply 110/230 Vac with PFC and eff. 90%
Light characteristics
Color rendering index CRI ≥ 70
Luminous flux 13 300 lm
Product Dimensions
Width/length/height 900x350x120 mm
Weight 15.5 kg
