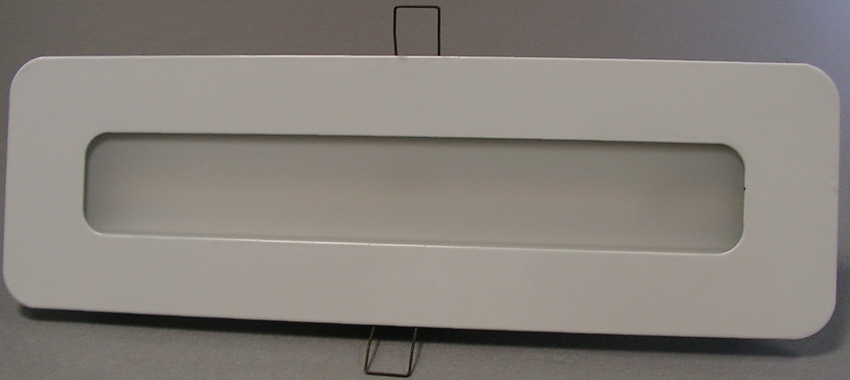

Residential indoor lighting LED C30

The LED C30 module is designed to be installed in Armstrong-type ceilings with classical downlight type of attaching. Very easy to install C30 is a great alternative lighting fixture if you want to achieve good luminance with great looks and low consumption. The LED C30 features unique construction, integrated mirror optics, high efficiency diffuser and the latest LED technology with efficiency up to 110 lm/W and is completely compatible with all 24Vdc (36 Vdc optional) LED power supplies.
Due to the high uniformity of the emitted light and the low overall brightness, LED C30 is applicable where the unified glare rating is of importance: schools, offices, hospitals, working halls. Containing no mercury, lead, or glass, LED modules do not present risk of area contamination that is possible with fluorescent lamp breakage.


  • Excellent total cost of ownership with attractive payback times
  • No annoying noises, vibrations and flickering
  • Unified Glare Rating is lower or equal to fluorescent tube
  • Long-life LEDs (with an average rated lifetime of 70 000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses.
  • 100% efficiency - directed light which guarantees that all of the luminosity goes where you need it

Technical Specification:





   General Characteristics




   LED manufacturer





   Anodized aluminium, mirror optics, diffuser

   Life to 70% lumen maintenance


   70 000 - 100 000 hr


   Operating temperature


   -30 - +40 °C


   Electrical Characteristics




   Equivalent to fluorescent tube T5/T8

   14 W/ 18 W

   28 W/ 36 W

   35 W/ 58 W

   Type of power source (not included)

   Constant Voltage 24 ±1 Vdc

   Power connection


 2-way screw terminal


   Light characteristics




   Color temperature

   2700, 3000, 3500, 4000, 4500 or 5000 °C

   Color rendering index


   CRI > 80


   Luminous flux

   900 - 1100 lm

   1800 - 2200 lm

   2300 - 2800 lm

   Product Dimensions





   555 mm

   1100 mm

   1400 mm

   Width/ height


   50x25 mm



   0,3 kg

   0,6 kg

   0,75 kg
