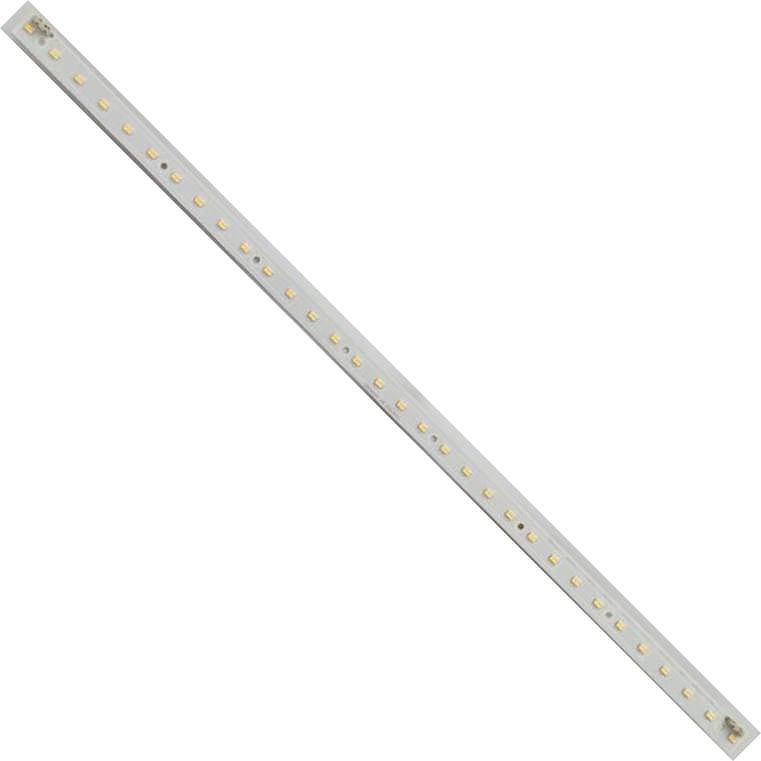

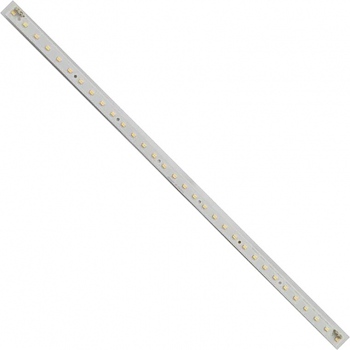

ProLight 1200

   ProLight 1200 module with LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for use in planar luminaires to replace two parallel 1200mm fluorescent tube (by 4 LED engines in series). The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 176 lm/W. The module is driven by constant current max 1050mA with voltage of max 13V. The design is improved for simple installation.

 Benefits:

• Ideal for linear and panel lights
• Perfect for replacing 1200mm florescent tube
• Luminous flux range from 970 lm – 1970 lm
• Efficacy of the module up to 176 lm/W
• High colour rendering index CRI > 80
• Small colour tolerance (MacAdam 3)
• Small luminous flux tolerances
• Colour temperatures from 2700K to 6500K
• Good uniform light, when several LED modules are used together in a line
• Samsung high efficiency LED chips
• Push terminals for quick and simple wiring of LED module to LED module
• Simple installation (e.g. screws)
• Long life-time: 50,000 hours



Technical Specification:

ProLight 1200	Color Temperature K	Typ. luminous flux at tj = 25 °C	Typ. Voltage at tj=25 °C	Typ. power consumption at tj = 25 °C	Luminous efficacy module at tj = 25 °C	Colour rendering index CRI
Operating mode High Efficiency at constant current 500mA	3000 K	972 Lm	11.76 V	5.88 W	165 Lm/W	>80
	4000 K	1004 Lm	11.76 V	5.88 W	171 Lm/W	>80
	5000 K	1035 Lm	11.76 V	5.88 W	176 Lm/W	>80
Operating mode High Output at constant current 1050mA	3000 K	1855 Lm	12.84 V	13.48 W	138 Lm/W	>80
	4000 K	1915 Lm	12.84 V	13.48 W	142 Lm/W	>80
	5000 K	1975 Lm	12.84 V	13.48 W	147 Lm/W	>80
