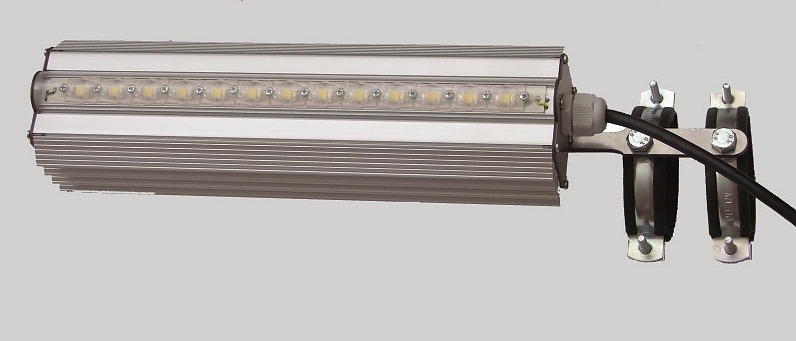

Outdoor/indoor luminaire 30L14


The 30l14 LED luminaire is designed to replace traditional tubular fluorescent/mercury lamps in small shops, bathrooms, corridors, streets, etc. Giving a bright and directed light beam, 30l14 provides the same amount of light with savings of up to 55% of electricity. The luminaire features the latest LED technology from one of the worlds leading manufacturers - Osram. Which provides the advantage of good efficacy - 106 Lm/W. The unique housing with superb heatsink qualities ensures the perfect working conditions for the LEDs at a great price.30l14 has embedded high efficiency switching power driver therefore it can be pluged in directly. All of these properties make 30l14 the perfect LED fixture for any budget.

30l14 LED luminaires have a special furrow for hex cap screw, which allows easy and fast instalation on any ceilling.

The lightening fixtures can be equipped with different lenses and diodes to suite the varying needs of the client (e.g. light beam angle and color temperature). Overall, the usage of LEDs helps to reduce the internal heating of the room, which is very important especially for refrigerators. Containing no mercury, lead, or glass, 30l14 do not present risk of food contaminations that is possible with fluorescent lamp breakage.

Benefits:

  • Excellent total cost of ownership with attactive payback times
  • Ease of installation
  • No annoying noises, vibrations and flickering
  • Long-life LEDs (with an average rated lifetime of 70 000 hours) reduce the maintenance and product replacement costs that are associated with flourescent systems
  • Significant sustainobility opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses(especially in case of refregirators)
  • 100% efficay-directed light which guarantees that all of the luminocity goes where you need it


Technical Specification:

General Characteristics
LED chip manufacturer Oslon Osram
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000hr
Operating temperature -10 - +40 °C
Ingress protection IP 54
Electrical Characteristics
Wattage 30 W
Type of power supply

230 V AC/ 95% efficiency non isolated

Light characteristics
Color rendering index CRI ≥ 70
Luminous flux 2250 lm
Product Dimensions
Width/length/height 300x70x85 mm
 Weight ;2.7 kg



Downloads

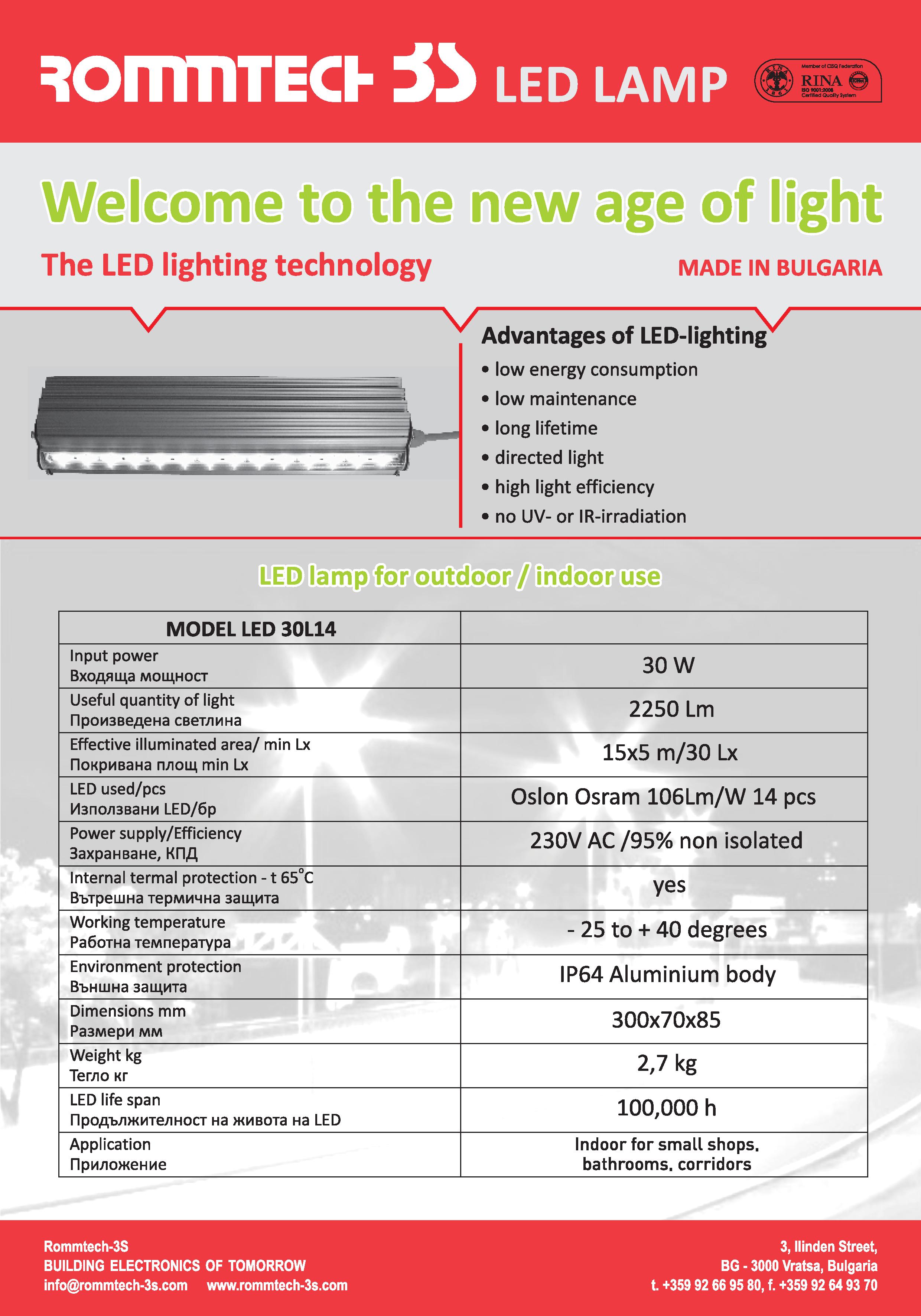

Brochure
size: 728 KB
