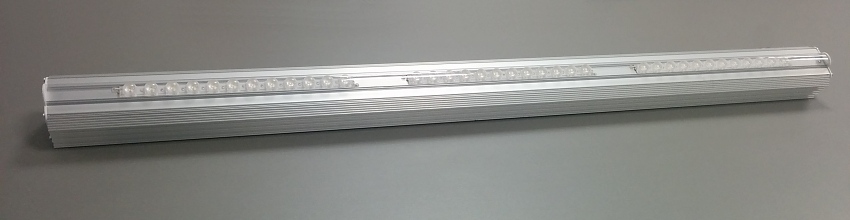

LED High Bay Light 35°/19°

LED High Bay Light luminaire is designed to replace traditional tubular fluorescent/mercury lamps (eqivalent to 3x36W fluorescent) in warehouses, working halls, malls, underground parkings and etc. Giving a bright and directed light beam, LED High Bay Lightprovides the same amount of light with savings of up to 55% of electricity. The luminaire features the latest LED technology from one of the worlds leading manufacturers - Osram. Which provides the advantage of good efficacy - 106 Lm/W. The unique housing with superb heatsink qualities ensures the perfect working conditions for the LEDs at a great price.LED High Bay Lighthas embedded high efficiency switching power driver therefore it can be pluged in directly. All of these properties make LED High Bay Lightthe perfect LED fixture for any budget.

LED High Bay Light luminaires have a special furrow for hex cap screw, which allows easy and fast instalation on any ceilling.

The lightening fixtures can be equipped with different lenses and diodes to suite the varying needs of the client (e.g. light beam angle and color temperature). Overall, the usage of LEDs helps to reduce the internal heating of the room, which is very important especially for refrigerators. Containing no mercury, lead, or glass, 100I42 do not present risk of food contaminations that is possible with fluorescent lamp breakage.


  • Excellent total cost of ownership with attractive payback times
  • Ease of installation
  • No annoying noises, vibrations and flickering
  • Long-life LEDs (with an average rated lifetime of 70 000 hours) reduce the maintenance and product replacement costs
  • Significant sustainobility opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses(especially in case of refregirators)
  • 100% efficay-directed light which guarantees that all of the luminocity goes where you need it

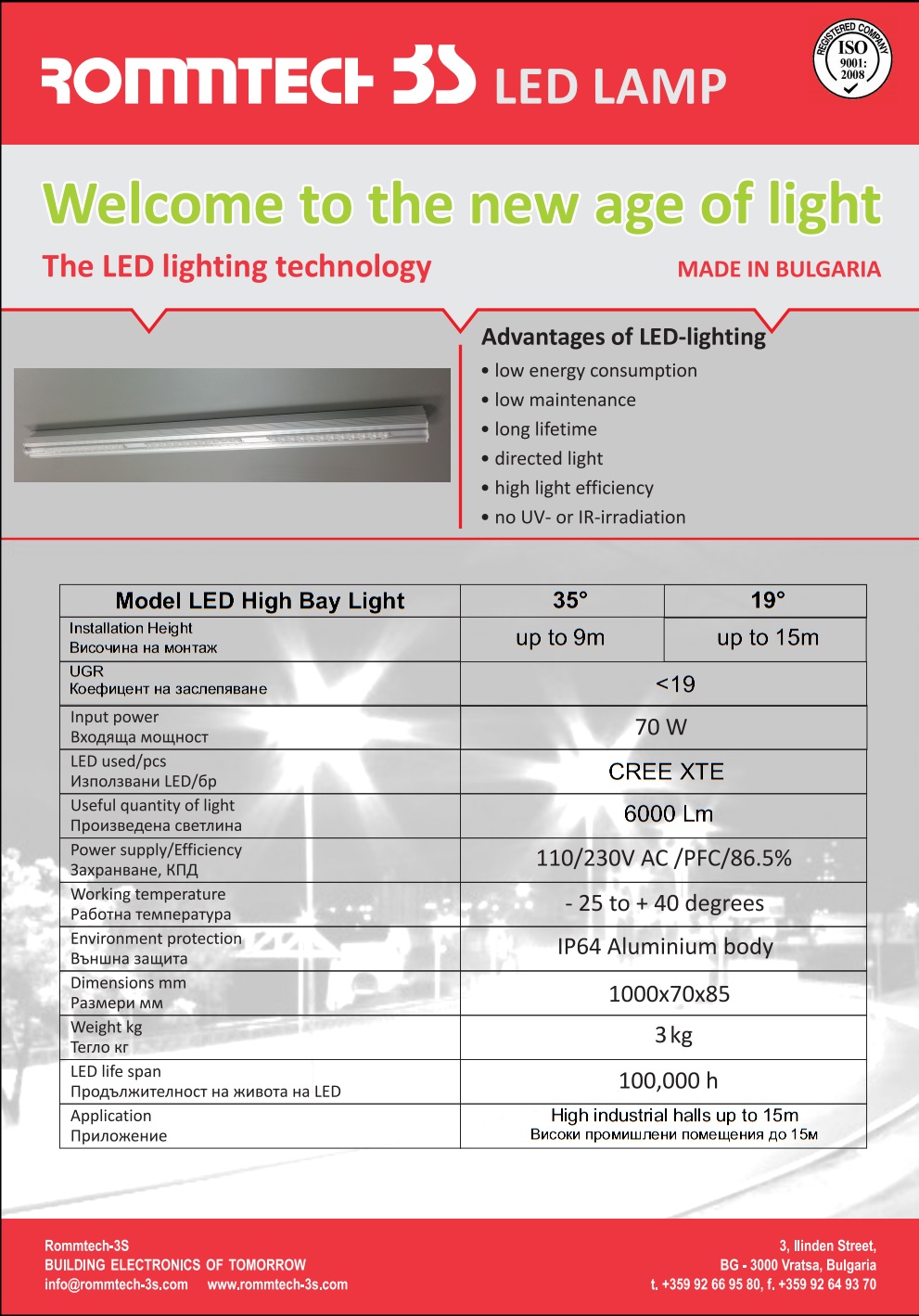

Technical Specification:

General Characteristics  35° 19°
LED chip manufacturer Cree XTE
Housing Aluminium / powder coated steel
Installation Height up to 9m / up to 15m
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000hr
Operating temperature -25 - +40 °C
Ingress protection IP 64
Electrical Characteristics
Wattage 70 W
Type of power supply 110/230 Vac with PFC and eff. 90%
Light characteristics
Color rendering index CRI ≥ 80
Luminous flux 6000 lm
Product Dimensions
Width/length/height 1000x70x85 mm
Weight 3 kg
