LED FORK HD

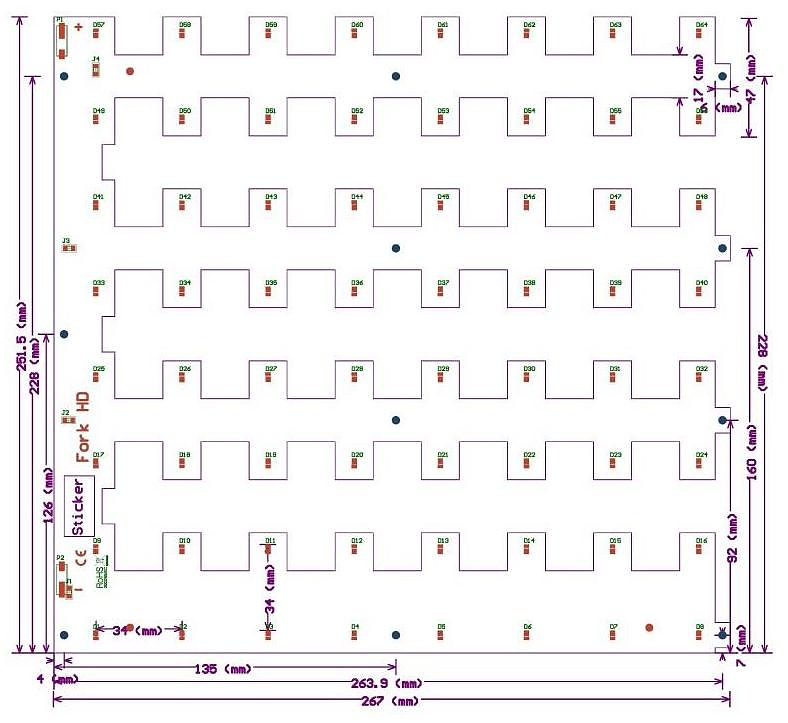

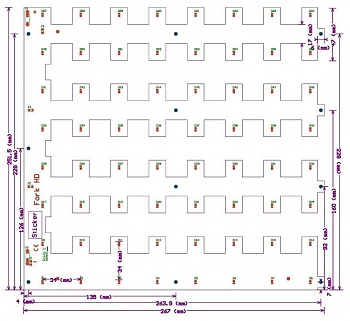

   Fork HD module with LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for use in panel luminaires with diffused light. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 190 lm/W. The module is driven by constant current max 500mA/1200mA with voltage of max 25V. The design is improved for simple installation. The module family covers the standard –267mm/252mm – used in the usual 30/60 and 60/60 panels with diffused light.

 Benefits:

• Ideal for linear and panel lights
• Luminous flux range from 1400 lm – 4580 lm
• Efficacy of the module up to 190 lm/W
• High colour rendering index CRI > 80
• Small colour tolerance (MacAdam 3)
• Small luminous flux tolerances
• Colour temperatures from 2700K to 6500K
• Good uniform light, even if several LED modules are used together in a line
• Self-cooling (no additional heat sink required)
• Push terminals for quick and simple wiring of LED module to LED module
• Simple installation (e.g. screws)
• Long life-time: 40,000 hours



Technical Specification:

Fork HD	Color Temperature K	Typ. luminous flux  at tj = 25 °C	Typ. Voltage at tj =25 °C	Typ. power consumption at tj = 25 °C	Luminous efficacy module at tj = 25 °C	Colour rendering index CRI
Module Low cost Efficiency at constant current 500mA	3000 K	1400 Lm	24.75 V	12.38 W	113 Lm/W	>80
	4000 K	1470 Lm	24.75 V	12.38 W	118 Lm/W	>80
	5000 K	1530 Lm	24.75 V	12.38 W	123 Lm/W	>80
Module High Output at constant current 1200mA	3000 K	3650 Lm	24.4 V	29.3 W	124 Lm/W	>80
	4000 K	3840 Lm	24.4 V	29.3 W	131 Lm/W	>80
	5000 K	4000 Lm	24.4 V	29.3 W	136 Lm/W	>80
Module High Efficiency at constant current 500mA	3000 K	1980 Lm	22.4 V	11.2 W	170 Lm/W	>80
	4000 K	2040 Lm	22.4 V	11.2 W	180 Lm/W	>80
	5000 K	2110 Lm	22.4 V	11.2 W	185 Lm/W	>80
Module High Efficiency and High Output at constant current 1200mA	3000 K	4280 Lm	24.65 V	29.6 W	144 Lm/W	>80
	4000 K	4400 Lm	24.65 V	29.6 W	148 Lm/W	>80
	5000 K	4500 Lm	24.65 V	29.6 W	152 Lm/W	>80
