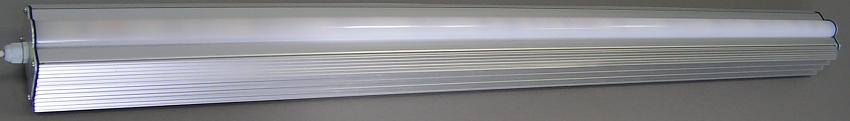

Industrial lighting 100L3x50Du


The 100L3x50Du LED luminaire is designed to replace traditional tubular fluorescent/mercury lamps (eqivalent to 3x36W fluorescent) in warehouses, working halls, malls, underground parkings and etc. Giving a bright and directed light beam, 100L3x50Du provides the same amount of light with savings of up to 55% of electricity. The luminaire features the latest LED technology from one of the worlds leading manufacturers - Osram. Which provides the advantage of good efficacy - 106 Lm/W. The unique housing with superb heatsink qualities ensures the perfect working conditions for the LEDs at a great price.100L3x50Du has embedded high efficiency switching power driver therefore it can be pluged in directly. All of these properties make 100L3x50Du the perfect LED fixture for any budget.

100L3x50Du won the first price for innovative product from BASSEL  at the International Fair - Plovdiv in 2013.

The lightening fixtures can be equipped with different lenses and diodes to suite the varying needs of the client (e.g. light beam angle and color temperature). Overall, the usage of LEDs helps to reduce the internal heating of the room, which is very important especially for refrigerators. Containing no mercury, lead, or glass, 100L3x50Du do not present risk of food contaminations that is possible with fluorescent lamp breakage.

Benefits:

  • Excellent total cost of ownership with attactive payback times
  • Ease of installation
  • No annoying noises, vibrations and flickering
  • Long-life LEDs (with an average rated lifetime of 70 000 hours) reduce the maintenance and product replacement costs that are associated with flourescent systems
  • Significant sustainobility opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • Overall, the usage of LEDs helps to reduce the internal heating in the premisses(especially in case of refregirators)
  • 100% efficay-directed light which guarantees that all of the luminocity goes where you need it


Technical Specification:

General Characteristics
LED chip manufacturer OSRAM / SAMSUNG
Housing Aluminium / powder coated steel
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000hr
Operating temperature -25 - +40°C
Ingress protection IP 64
Electrical Characteristics
Wattage 50 W
Type of power supply 230 Vac with PFC and eff. 90%
Light characteristics
Color rendering index CRI ≥ 80
Luminous flux - clear/ opal 5500 Lm / 4600 Lm
Product Dimensions
Width/length/height 1000x70x85 mm
Weight 3 kg



Downloads

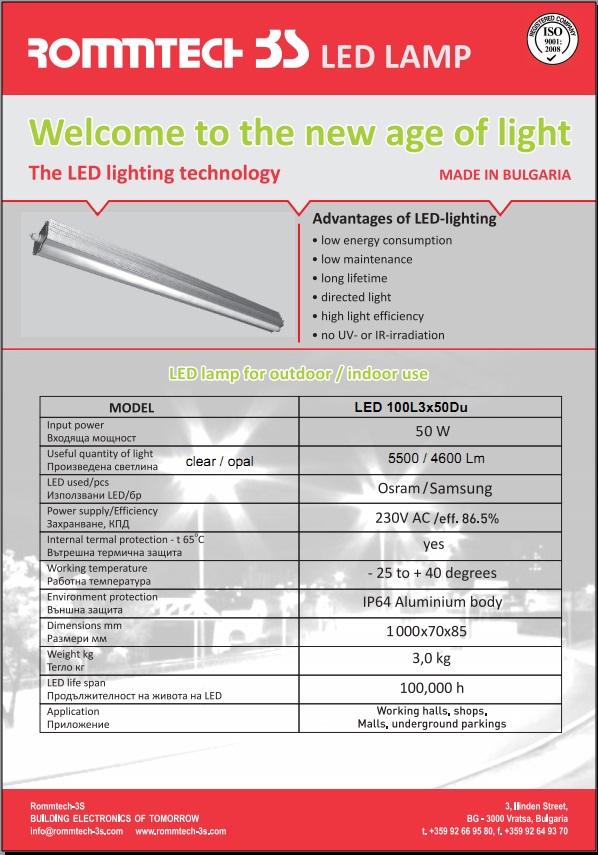

Brochure
size: 158 KB
