24XTE

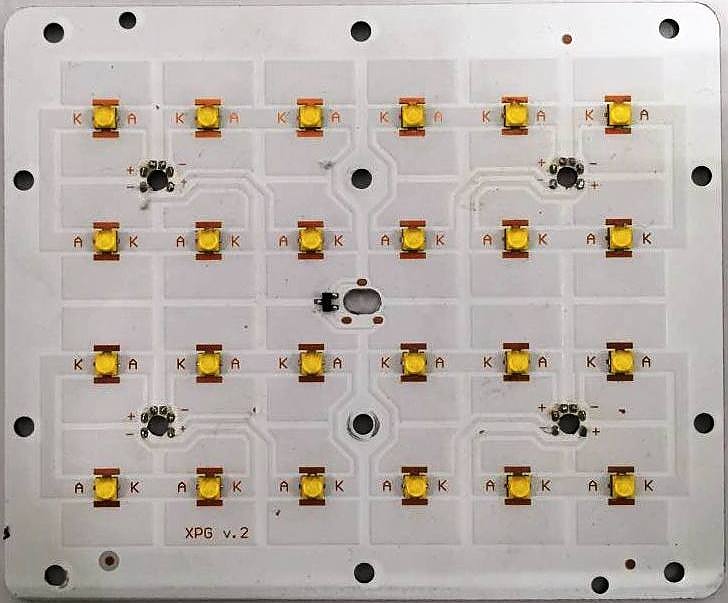

   24XTE module with LEDs of the latest generation from the top chip producers in the world – CREE and SAMSUNG achieve maximum efficiency values. The modules have been specifically developed on high thermoconductive aluminium plate with extra thick copper. The product range covers colour temperatures Warm White 3000K,Neutral White 4000K, Cold White 5000K and 6000K and module efficiency of up to 168 lm/W. The modules have been specifically developed for use street lightning. The 8x3 model is specially designed for photovoltaics – runs from 8.55V – perfect for 12V battery plus driver. The module is driven by constant current. The design is improved for simple installation.

 Benefits:

  • Luminous flux range from 2700 lm – 8000 lm
  • Efficacy of the module up to 158 lm/W
  • Small luminous flux tolerances
  • Colour temperatures from 4000K to 6500K
  • Two models for different voltage
  • Applicable for photovoltaics
  • Optional thermoresistor / sensor
  • LEDLINK lenses usable
  • Could reach high power in small area
  • Simple installation (e.g. screws)
  • Long life-time: >50,000 hours

Technical Specification:

24XTE

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

8x3
Typ. Voltage
at tj =25°C

2x12
Typ. Voltage
 at tj =25 °C

Typ. power consumption
 at tj = 25 °C

Luminous efficacy module
 at tj = 25 °C

Colour renderin index
CRI

Cree XT-E
High Efficiency
at constant current 350mA/str

4000 K

3360 Lm

8.55 V

34.2 V

23.94 W

140 Lm/W

>80

5000 K

3552 Lm

8.55 V

34.2 V

23.94 W

148 Lm/W

>80

6000 K

3792 Lm

8.55 V

34.2 V

23.94 W

158 Lm/W

>80

Cree XT-E
High Output
at constant current 800mA/str

4000 K

7184 Lm

9.25 V

37 V

59.2 W

121 Lm/W

>80

5000 K

7596 Lm

9.25 V

37 V

59.2 W

128 Lm/W

>80

6000 K

8108 Lm

9.25 V

37 V

59.2 W

137 Lm/W

>80

Samsung LH351A
High Efficiency
 at constant current 350mA/str

4000 K

3120 Lm

8.88 V

35.5 V

24.84 W

126 Lm/W

>80

5000 K, 5700 K, 6500 K

3552 Lm

8.88 V

35.5 V

24.84 W

135 Lm/W

>80

Samsung LH351A
High Output
at constant current 700mA/str

4000 K

5688 Lm

9.25 V

37 V

51.8 W

110 Lm/W

>80

5000 K, 5700 K, 6500 K

6096 Lm

9.25 V

37 V

51.8 W

118 Lm/W

>80
