Luna 10-20W

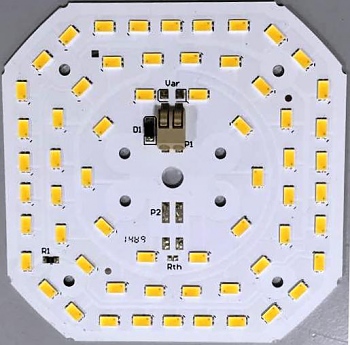

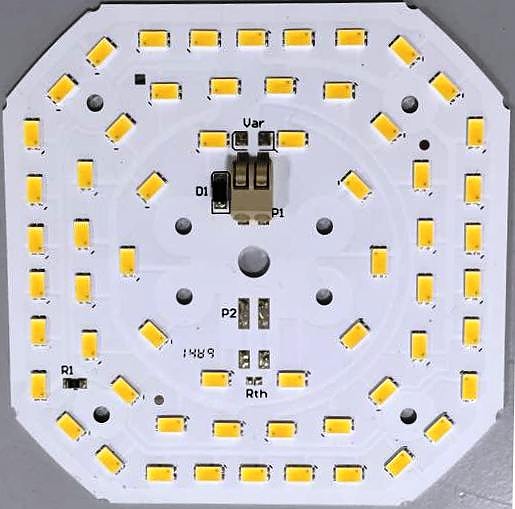

   Luna 10-20W module with LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed on aluminium plate for best heat dissipation and for use in planar luminaires. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 159 lm/W. There are two modules in this family - low power – Luna 10Watts designed to fit standard drivers 10W @350mA and Luna 20W - 20Watts @700mA

 Benefits:

  • Ideal for spotlights and downlights
  • Luminous flux range from 1400 lm – 3000 lm
  • Efficacy of the module up to 159 lm/W
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 2700K to 6500K
  • Aluminum plate for best heat dissipation
  • Samsung LED chips
  • Push terminals for quick and simple wiring
  • Simple installation (e.g. screws)
  • Long life-time: 50,000 hours

Technical Specification:

Luna 10-20W

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj =25 °C

Typ. power consumption
at tj = 25 °C

Luminous efficacy module
at tj = 25 °C

Colour rendering index
CRI

Luna 20W

Operating mode High Efficiency
at constant current 350mA

3000 K

1523 Lm

29 V

10.2 W

149 Lm/W

>80

4000 K

1588 Lm

29 V

10.2 W

156 Lm/W

>80

5000 K

1620 Lm

29 V

10.2 W

159 Lm/W

>80

Luna 20W

Operating mode High Output
at constant current 700mA

3000 K

2820 Lm

31.5 V

22 W

128 Lm/W

>80

4000 K

2940 Lm

31.5 V

22 W

134 Lm/W

>80

5000 K

3000 Lm

31.5 V

22 W

136 Lm/W

>80

Luna 10W

Operating mode High Output
at constant current 350mA

3000 K

1410 Lm

31.5 V

11 W

128 Lm/W

>80

4000 K

1470 Lm

31.5 V

11 W

134 Lm/W

>80

5000 K

1500 Lm

31.5 V

11 W

136 Lm/W

>80
