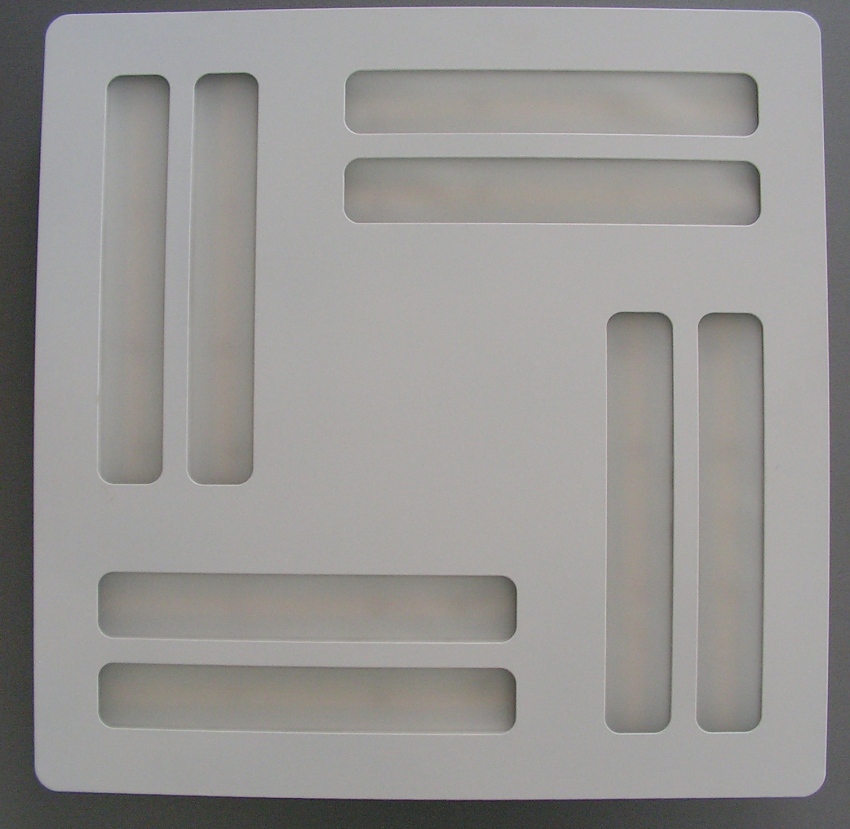

Office lighting GRP 60x60-ECO8

Your second ECOnomical and ECOlogical LED alternative to the old 4x18W fluorescent lamps.

Our GRP60x60-ECO8 LED luminaires are designed to replace traditional tubular fluorescent grid lamps in the areas with Armstrong-type ceilings, producing the same amount of light with savings of up to 55% of electricity. The luminaire features modules with unique construction, integrated mirror optics, high efficiency diffuser and the latest LED technology, which increases the lamp’s efficiency up to 100 lm/W. Additionally it have embedded high efficiency switching power driver with PFC and efficiency of 90%.

 As power connector is used WAGO screwless terminal, which allows very fast on-site installation in less than 5 minutes.

The lamps can be equipped with different diodes to suit the varying needs of the client as color temperature of the light. Overall, the usage of LEDs helps to reduce the internal heating of the room, which helps to lower needed cooling capacity of the air conditioning system. Containing no mercury, lead, or glass, GRP60x60-ECO8 do not present risk of area contamination that is possible with fluorescent lamp breakage. Due to the high uniformity of the emitted light and the low overall brightness, the luminaire is applicable where the unified glare rating is of importance: schools, offices, hospitals, working halls.

Benefits

• Excellent total cost of ownership with attractive payback times
• No annoying noises, vibrations and flickering
• Long-life LEDs  (with an average rated lifetime of 70,000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
• Unified Glare Rating is lower or equal to fluorescent tube
• Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
• Overall, the usage of LEDs helps to reduce the internal heating in the premisses
• 100% efficacy - directed light which guarantees that all the luminocity goes where is needed
• Push-in connector: connection without opening the luminaire


Technical Specification:

General Characteristics
LED chip manufacturer	OSRAM
Housing	Aluminium / powder coated steel
Life of the LEDs to 70% lumen maintenance	70 000 - 100 000hr
Operating temperature	-25 - +40;°C
Ingress protection	IP 20
Electrical Characteristics
Wattage	45 W
Type of power supply	230 Vac with PFC and eff. 90%
Light characteristics
Color rendering index	CRI ≥ 80
Luminous flux	4000 lm
Product Dimensions
Width/length/height	590x590x40 mm
Weight	4,4 kg
