LED FORK

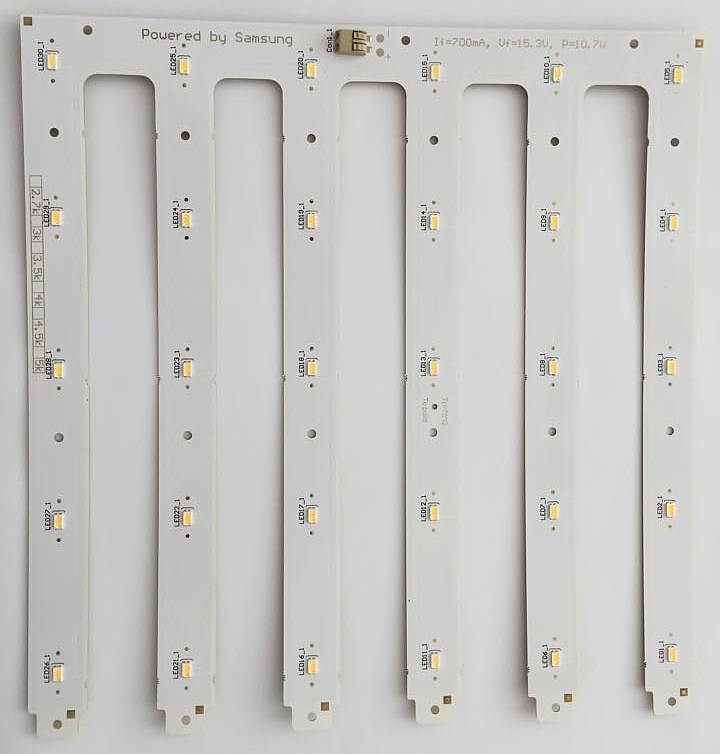

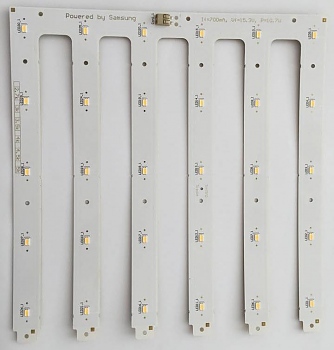

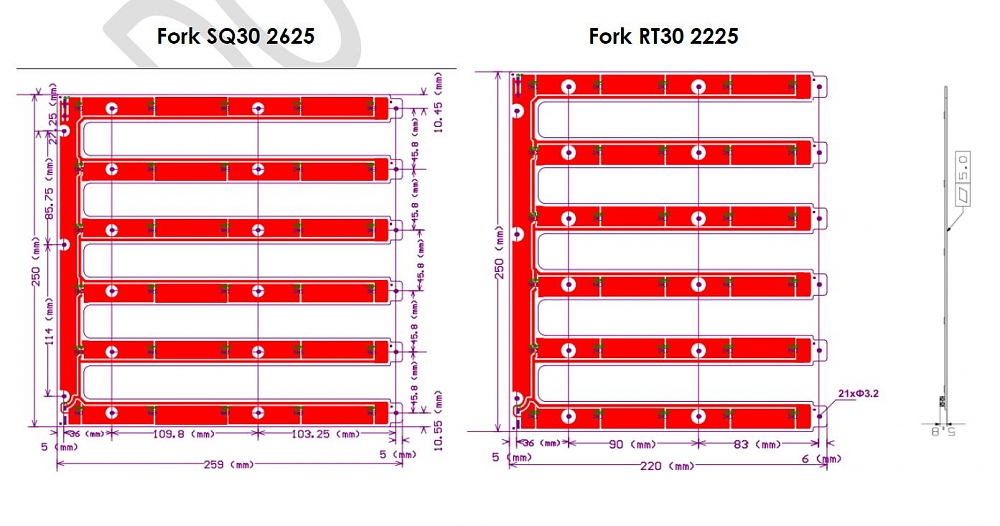

   Fork module with Samsung LED chips of the latest generation achieve maximum efficiency values and optimum light uniformity. The modules have been specifically developed for use in panel luminaires. The product range covers colour temperatures Warm White 2700K, 3000K, Neutral White 4000K and Cold White 5000K, 6000K with CRI > 80 and module efficiency of up to 139 lm/W. The module is driven by constant current max 700mA with voltage of max 16V. The design is improved for simple installation. The module family covers two standards – Fork SQ30 2625 - 259mm/250mm and Fork RT30 2225 - 220mm/250mm.

 Benefits:

  • Ideal for linear and panel lights
  • Luminous flux range from 870 lm – 1584 lm
  • Efficacy of the module up to 167 lm/W
  • High colour rendering index CRI > 80
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 3000K to 6500K
  • Good uniform light, even if several LED modules are used together in a line
  • Self-cooling (no additional heat sink required)
  • Push terminals for quick and simple wiring of LED module to LED module
  • Simple installation (e.g. screws)
  • Long life-time: 50,000 hours



Technical Specification:

Fork SQ30 2625
Fork RT30 2225

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj =25 °C

Typ. power consumption
at tj = 25 °C

Luminous efficacy module
at tj = 25 °C

Colour rendering index
CRI

Operating mode High Efficiency
at constant current 390mA

3000 K

870 Lm

14.75 V

5.75 W

151 Lm/W

>80

4000 K

930 Lm

14.75 V

5.75 W

161 Lm/W

>80

5000 K

960 Lm

14.75 V

5.75 W

167 Lm/W

>80

Operating mode High Output
at constant current 700mA

3000 K

1435 Lm

15.7 V

11 W

130 Lm/W

>80

4000 K

1534 Lm

15.7 V

11 W

139 Lm/W

>80

5000 K

1584 Lm

15.7 V

11 W

144 Lm/W

>80
