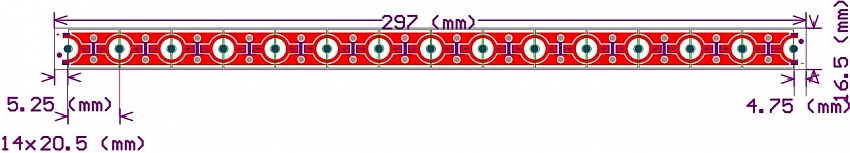

14XTE

14XTE module with LEDs of the latest generation from the top chip producers in the world - CREE and Samsung achieve maximum efficiency values. The modules have been specifically developed on high thermoconductive aluminium plate with extra thick copper. The product range covers colour temperatures Warm White 3000K, Neutral White 4000K, Cold White 5000K and 6000K and module efficiency of up to 175 lm/W. The module is driven by constant current. The design is improved for simple installation. The module covers three types of LEDs for most applications. This LED engine is compatible with three LEDIL single lenses familes – with the different angles to achieve all types of distortions.

 Benefits:

• Ideal for linear and panel lights
• Luminous flux range from 1800lm – 11000 lm
• Efficacy of the module up to 175 lm/W
• Small colour tolerance (MacAdam 3)
• Small luminous flux tolerances
• Colour temperatures from 2700 K to 6500 K
• Lenses with various angles available
• Simple installation (e.g. screws)
• Long life-time: >50,000 hours

Technical Specification:



14XTE	Color Temperature K	Typ. luminous flux at tj = 25 °C	Typ. Voltage at tj =25 °C	Typ. power consumption at tj = 25 °C	Luminous efficacy module at tj = 25 °C	Colour rendering index CRI
Cree XT-E High Efficiency at constant current 350mA	4000 K	1960 Lm	39.9 V	13.96 W	140 Lm/W	>80
	5000 K	2072 Lm	39.9 V	13.96 W	148 Lm/W	>80
	6000 K	2212 Lm	39.9 V	13.96 W	159 Lm/W	>80
Cree XT-E  High Output at constant current 800mA	4000 K	4191 Lm	43.2 V	34.5 W	122 Lm/W	>80
	5000 K	4431 Lm	43.2 V	34.5 W	128 Lm/W	>80
	6000 K	4730 Lm	43.2 V	34.5 W	137 Lm/W	>80
Samsung LH351A  High Efficiency at constant current 350mA	4000 K	1820 Lm	41.4 V	14.5 W	126 Lm/W	>80
	5000 K, 5700 K, 6500 K	2072 Lm	41.4 V	14.5 W	143 Lm/W	>80
Samsung LH351A  High Output at constant current 700mA	4000 K	3318 Lm	43.2 V	30.2 W	110 Lm/W	>80
	5000 K, 5700 K, 6500 K	3556 Lm	43.2 V	30.2 W	118 Lm/W	>80
Cree XP-L  High Efficiency at constant current 500mA	4000 K, 5000 K, 6000 K	3413 Lm	39.1 V	19.5 W	175 Lm/W	>80
Cree XP-L  High Output at constant current 2000mA	4000 K, 5000 K, 6000 K	11227 Lm	44.2 V	88.4 W	127 Lm/W	>80
