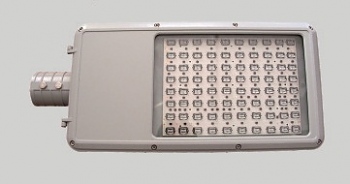

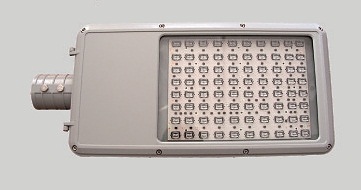

Outdoor luminaire Model 211

Many municipal authorities are embracing the benefits of contemporary outdoor lighting – increasing comfort, safety and security, making districts more attractive, and enhancing the public’s sense of well-being. Not to mention its positive impact on environmental protection and city branding. With the pure, contemporary looks mdoel 211, cities can fulfill all their road lighting requirements. The design integrates perfectly with today's cityscape. Blending clean, simple design and high performance, LED 211 is suitable for a wide range of applications, from major traffic roads to city centers.Multi-layer optics provide uniform distribution and reduced glare, allowing direct replacement of HID solutions without compromising on spacing, mounting height or light quality. And the energy-efficient fixture 211 is delivered ready for toll-less serviceability/upgrades, ensuring savings far into the future.

The model has a wide range of different luminosity, installation heights, effective illuminated areas and power consumption.

Benefits

  • Excellent total cost of ownership with attractive payback times
  • No annoying noises, vibrations and flickering
  • Long-life LEDs  (with an average rated lifetime of 70,000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Provides a choice of high system efficacy levels to meet different energy saving targets
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • 100% efficacy - directed light which guarantees that all the luminocity goes where is needed

Technical Specification:

General Characteristics
LED chip manufacturer Osram
Housing Aluminium / powder coated steel
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000hr
Operating temperature -25 - +50 °C
Ingress protection IP 65
Electrical Characteristics
Wattage 80 W / 90 W
Type of power supply 110/230 Vac with PFC and eff. 90%
Light characteristics
Color rendering index CRI ≥ 70
Luminous flux 7400 Lm / 9700 Lm
Product Dimensions
Width/length/height 600x270x100 mm
Weight 6.7 ;kg




Downloads

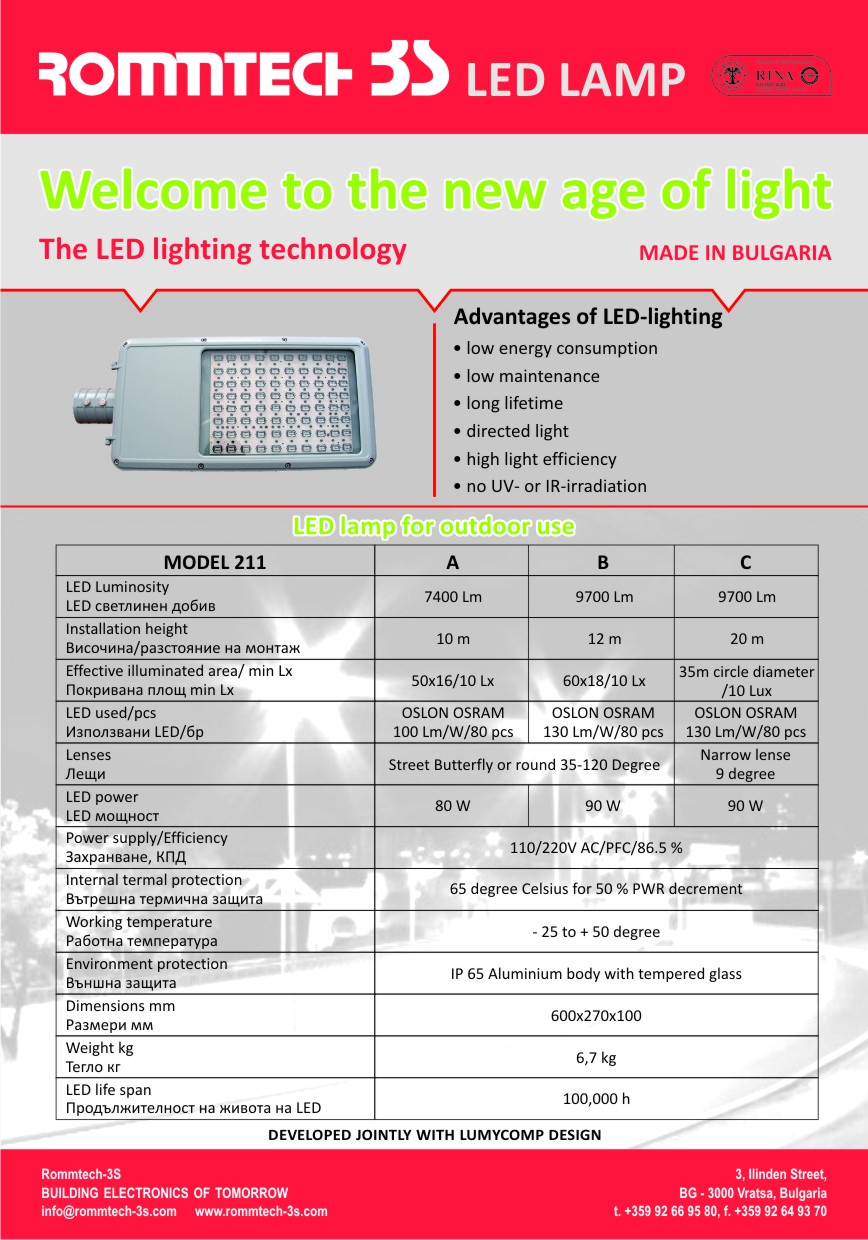

Brochure
