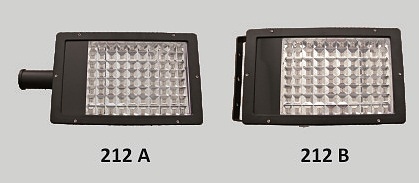

Outdoor luminaire 212B

212B LED is a classic, extremely efficient asymmetric luminaire that can be used to illuminate large areas. Designed around the latest LED technology, it offers significant energy and maintenance savings compared with conventional HID systems. Thanks to its highly efficient reflector, it can be used for area lighting applications that have traditionally required HID-equivalent power levels. LED upgrades can be easily incorporated, making this a truly future-proof solution.With its compact shape and aesthetically pleasing design. With it`s high efficacy of 120Lm/W and high luminous flux - 6000Lm 212B is a great replacement of any old technology.

The 212B luminaire has a build in power supply with power factor correction and wide input voltage range - 110/220VAC standarts and internal termal protection with a 50% PWM decrement at 65 degree Celsius to protect the LEDs. The housing is with high environment protection - IP65 with tempered glass and is suitable for pole mounting.

Benefits:

  • Delivers reliable performance and significant energy savings
  • Provides a choice of high system efficacy levels to meet different energy saving targets
  • Simple, economical, sustainable and reliable LED luminaire
  • Ensures visual comfort for all users
  • Positive impact on environment - directed light (no light pollution), UV- and IR- irradiation
  • Low maintanance costs


Technical Specification:

General Characteristics
LED chip manufacturer Osram
Housing Aluminium / powder coated steel
Life of the LEDs to 70% lumen  maintenance 70 000 - 100 000hr
Operating temperature ;-25 - +40 °C
Ingress protection IP 65
Electrical Characteristics
&Wattage 80W
Type of power supply 110/220 V AC/PFC
Light characteristics
Color rendering index CRI ≥ 70
Luminous flux 6000 lm
Product Dimensions
Width/length/height

455x266x100 mm

Weight 6,7 kg




Downloads

Light Characteristics
size: 0 KB

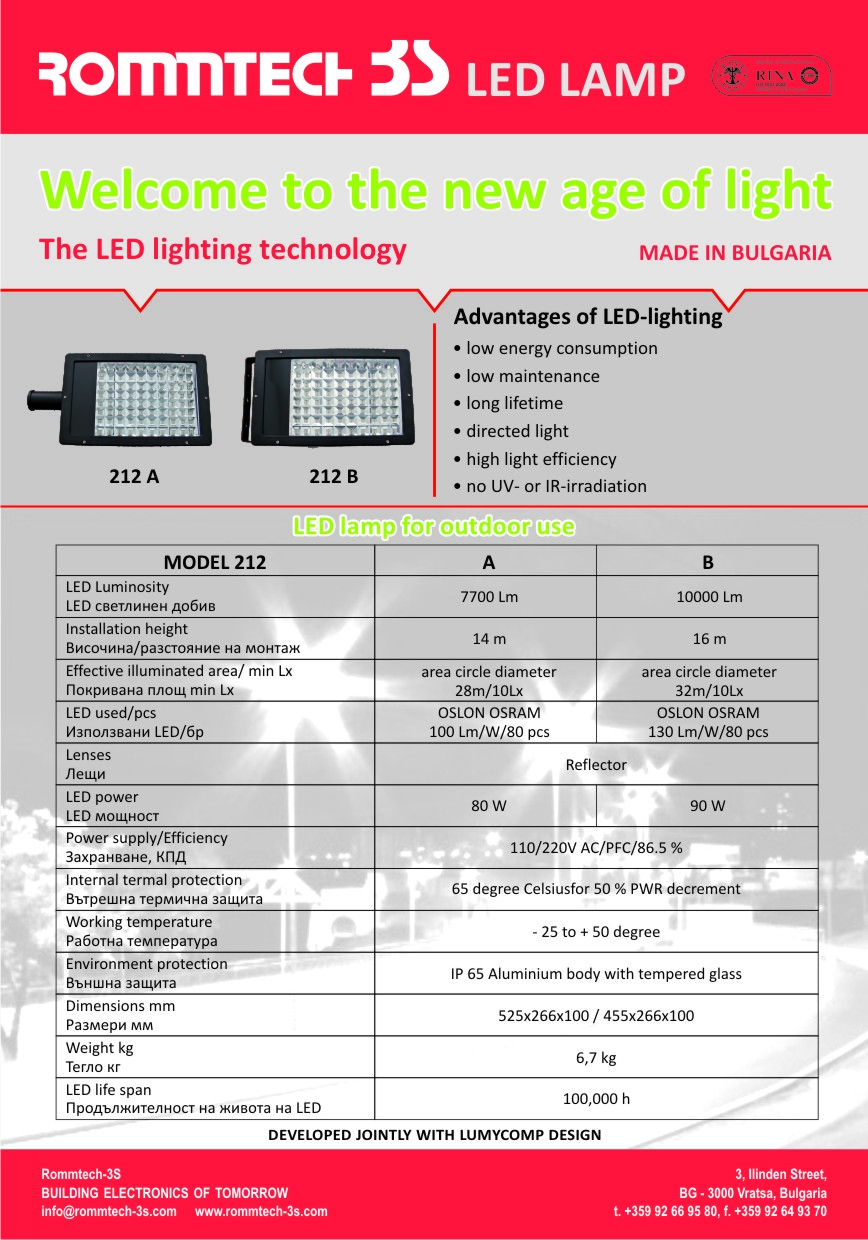

Brochure
