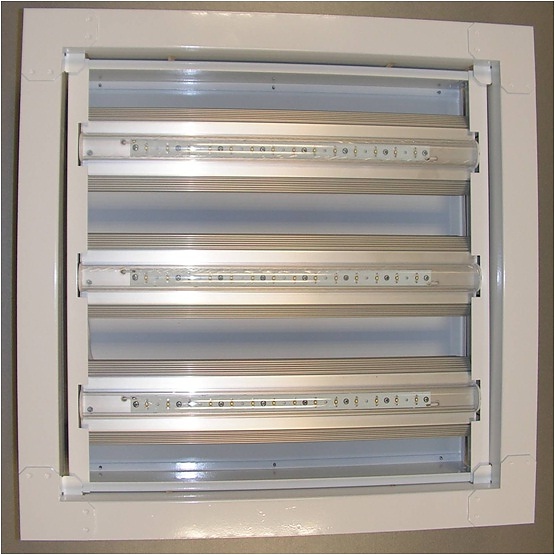

Gas station/high ceiling luminaire LED 3x38L14


With operating margins under pressure, companies are looking for ways to save energy. LED products like our LED 3x38L14 luminaires are a perfect solution.Designed for petrol-station canopies and high ceilings, these ultra-efficient retrofit fixtures offer outstanding light quality, effective thermal management, and a very long lifespan. Reduced maintenance, replacement and energy cost means a short payback period, making  LED 3x38L14 a shining example of how businesses can save money by opting for green products. The inovative housing gives you not only good enviorment protection - IP54 but the oportunity to aim the light exactly where you want it, because all of the four modules can be freely rotated and that way you can iluminate any area.3x38L14 has also a build in power supply with power factor correction and termal protection that prologns the LEDs lifespan.

The lightening fixtures can be equipped with different diodes to suite the varying needs of the client (e.g. light beam angle and color temperature



 Benefits

  • Excellent total cost of ownership with attractive payback times
  • No annoying noises, vibrations and flickering
  • Long-life LEDs  (with an average rated lifetime of 70,000 - 100 000 hours) reduce the maintenance and product replacement costs that are associated with fluorescent systems
  • Free rotation of the modules providing custom iluminated area.
  • Significant sustainability opportunity due to lower energy consumption, reduced waste and elimination of hazardous substances such as mercury and lead
  • 100% efficacy - directed light which guarantees that all the luminocity goes where is needed

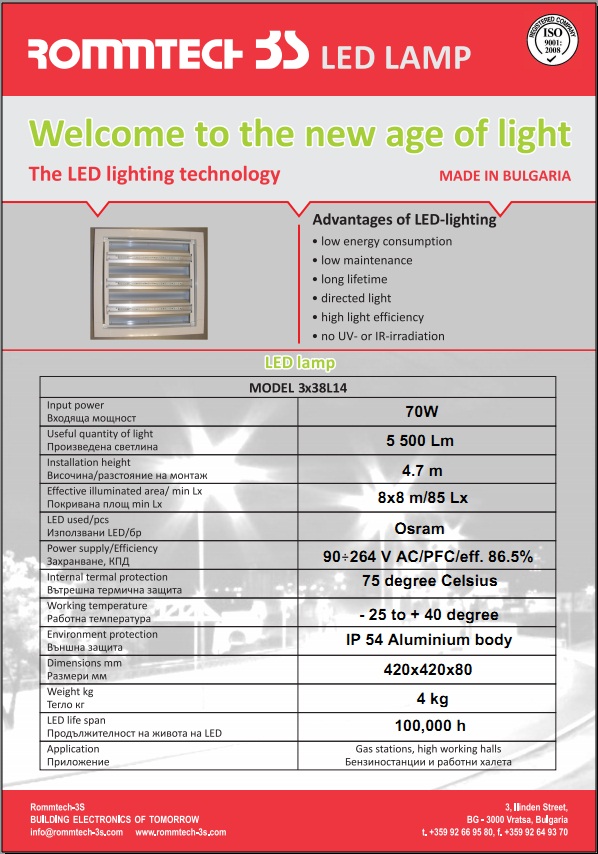

Technical Specification:

General Characteristics
LED chip manufacturer OSRAM Oslon
Life of the LEDs to 70% lumen maintenance 70 000 - 100 000 hr
Operating temperature -25 - +40 °C
Ingress protection IP 54
Electrical Characteristics
Wattage 70 W
Type of power supply 90-264 V AC/ PFC/ 86.5%
Light characteristics
Color rendering index CRI ≥ 70
Luminous flux 5500 lm
Product Dimensions
Width/length/height 420x420x80 mm
Weight 4 kg
