EMILI

   EMILI is an Endless Modular Innovative LED Iluminaire.

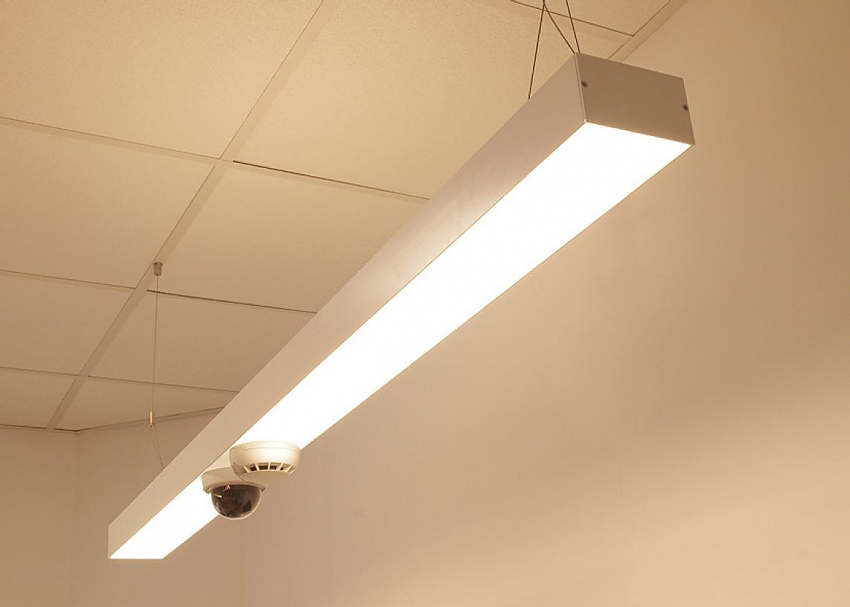

   The module system is designed not only to provide opal diffused uniform light in an endless line on its vast 108mm wide but also to handle the different kind of wiring of the room e.g. fire alarms, security systems, central audio systems, video surveillance, computer net and etc. The wide high-grade extruded aluminum and diffuser is designed to fit smoke detectors, smoke indicators, cameras, PIR sensors, microwave sensors(could be built in invisible), audio speakers and etc. The family provides interior solutions in three efficiency levels - high efficiency, high output and standard.

   They can be built as surface mounted, pendant, wall mounted or recessed. The pendant and wall mounted version can be not only with direct but also indirect lightning. The modules lightning part can be produced in increment of 280mm plus 8mm a side for end caps and custom length for sensors attachments. Each module can reach up to 1976mm. Bigger sizes are available on request.
   EMILI is designed to be able to build an endless line with modules connected to each other and diffusers specially formed (overlapped) to hide the line between the modules. Standard CRI is 80 but can reach to 95 on request. With color temperature from 3000K to 6000K.

The module can build any figure with custom angles and sizes.
Reference product code: EMILI 48ID12 W840 HEHP EM P D

Benefits:

  • Provides a choice of high system efficacy levels to meet different energy saving targets
  • Excellent thermal managment thanks to patent pending convection tunnels
  • Unified Glare Rating is lower than fluorescent tube( UGR<19)
  • Provides a choice of high system efficacy levels to meet different energy saving targets
  • Applications are surface mounted, recessed, pendant or wall mounted.
  • DALI dimming and Emergency mode available

Technical Specification:

Model Power Direct light Power Indirect light Useful quantity of light Input power Dimensions mm Weight kg Common characteristics
EMILI 12 12 W - 1 500 Lm 14 W 300x108x65 1.5 kg UGR <19
EMILI 24 24 W - 3 000 Lm 28 W 580x108x65 2.1 kg Power supply 230VAC / PFC>90
EMILI 36 36 W - 4 500 Lm 41 W 860x108x65 2.8 kg Working temperature -25 to +40ºC
EMILI 48 48 W - 6 000 Lm 55 W 1140x108x65 3.5 kg Environment protection IP20
EMILI 48ID6 48 W 6 W 6 800 Lm 61 W 1140x108x65 3.5 kg LED LM80 50 000 h.
EMILI 48ID12 48 W 12 W 7 300 Lm 68 W 1140x108x65 3.5 kg Application Indoor
EMILI 60 60 W - 7 300 Lm 68 W 1420x108x65 4.3 kg Dimmable DALI / 1-10V
EMILI 60ID12 60 W 12 W 9 800 Lm 80 W 1420x108x65 4.3 kg Mounting method surface / recessed / pendant / wall
EMILI 72 72 W - 9 800 Lm 80 W 1700x108x65 5.1 kg Color temperature 2 700K - 6 000K
EMILI 72ID18 72 W 18 W 11 500 Lm 103 W 1700x108x65 5.3 kg Emergency 3 hours / Self test
EMILI 72ID24 72 W 24 W 12 300 Lm 110 W 1700x108x65 5.3 kg Color White / Black / Custom
EMILI 84 84 W - 10 500 Lm 96 W 1980x108x65 6.1 kg Efficiency levels

90 Lm/W;
102 Lm/W;
113 Lm/W

EMILI 84ID24 84W 24 W 13 500 Lm 123 W 1980x108x65 6.1 kg Power levels 8 W / 280 mm;
12 W / 280 mm;
20 W / 280 mm
