12XTE Vanessa

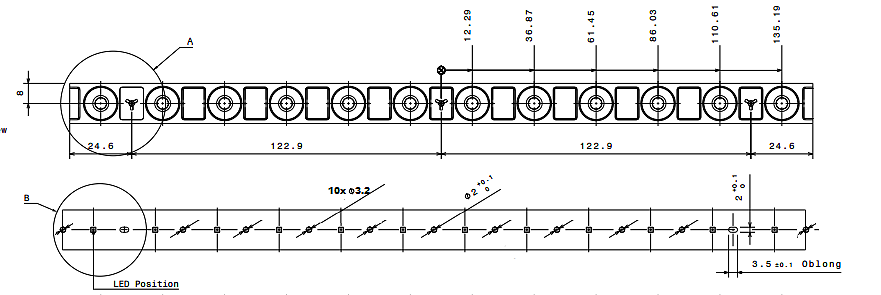

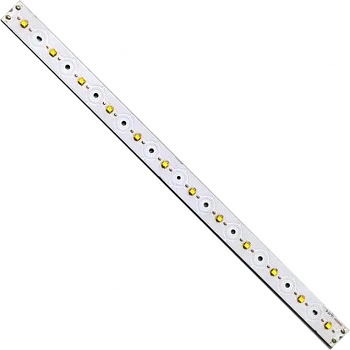

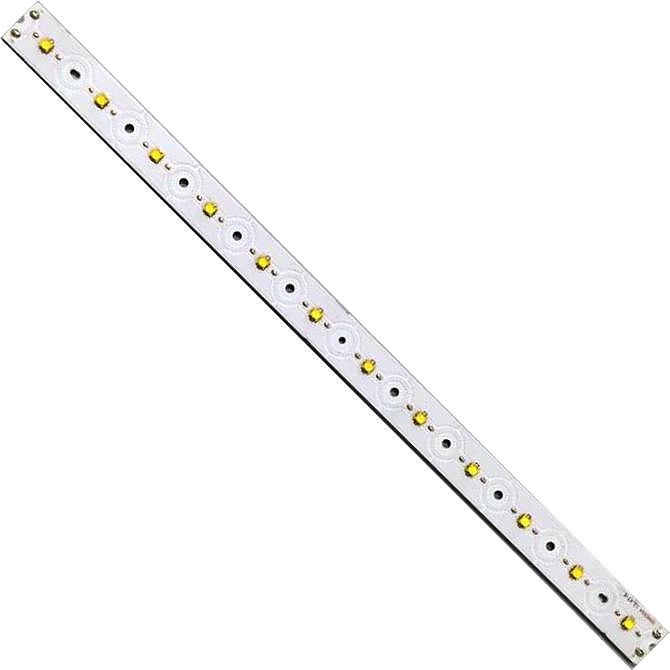

   12XTE Vanessa module with LEDs of the latest generation from the top chip producers in the world – CREE and SAMSUNG achieve maximum efficiency values. The modules have been specifically developed on high thermoconductive aluminium plate with extra thick copper. The product range covers colour temperatures Warm White 3000K,Neutral White 4000K, Cold White 5000K and 6000K and module efficiency of up to 175 lm/W. The module is driven by constant current. The design is improved for simple installation. The module covers three types of LEDs for most applications. This LED engine is compatible with LEDIL lenses family Vanessa – with the different angles to achieve all types of distortions.

Benefits:

  • Ideal for linear and panel lights
  • Luminous flux range from 1600 lm – 9000 lm
  • Efficacy of the module up to 175 lm/W
  • Small colour tolerance (MacAdam 3)
  • Small luminous flux tolerances
  • Colour temperatures from 2700 K to 6500 K
  • Lenses with various angles available
  • Simple installation (e.g. screws)
  • Long life-time: >50,000 hours



Technical Specification:

12XTE Vanessa

Color Temperature
K

Typ. luminous flux
at tj = 25 °C

Typ. Voltage
at tj =25 °C

Typ. power consumption
at tj = 25 °C

Luminous efficacy module
at tj = 25 °C

Colour rendering index
CRI

Cree XT-E
High Efficiency
at constant current 350mA

4000 K

1680 Lm

34.2 V

11.97 W

140 Lm/W

>80

5000 K

1776 Lm

34.2 V

11.97 W

148 Lm/W

>80

6000 K

1896 Lm

34.2 V

11.97 W

158 Lm/W

>80

Cree XT-E
High Output
at constant current 800mA

4000 K

3592 Lm

37 V

29.6 W

121 Lm/W

>80

5000 K

3798 Lm

37 V

29.6 W

128 Lm/W

>80

6000 K

4054 Lm

37 V

29.6 W

137 Lm/W

>80

Samsung LH351A
High Efficiency
at constant current 350mA

4000 K

1560 Lm

35.5 V

12.42 W

126 Lm/W

>80

5000 K, 5700 K, 6500 K

1776 Lm

35.5 V

12.42 W

135 Lm/W

>80

Samsung LH351A
High Output
at constant current 700mA

4000 K

2844 Lm

37 V

25.9 W

110 Lm/W

>80

5000 K, 5700 K, 6500 K

3048 Lm

37 V

25.9 W

118 Lm/W

>80

Cree XP-L
High Efficiency
at constant current 500mA

4000 K, 5000 K, 6000 K

2970 Lm

33.5 V

16.74 W

175 Lm/W

>80

Cree XP-L
High Output
at constant current 2000mA

4000 K, 5000 K, 6000 K

9623 Lm

37.9 V

75.8 W

127 Lm/W

>80
