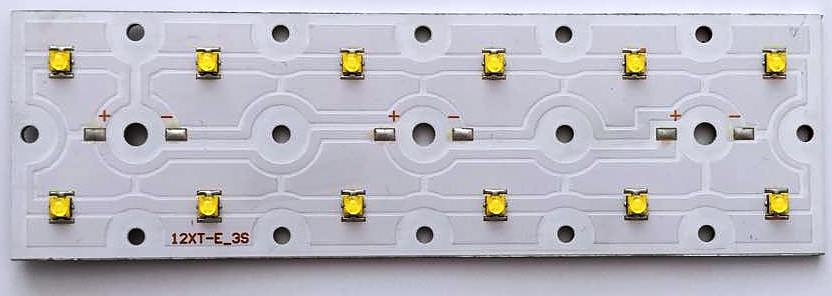

12XTE Strada

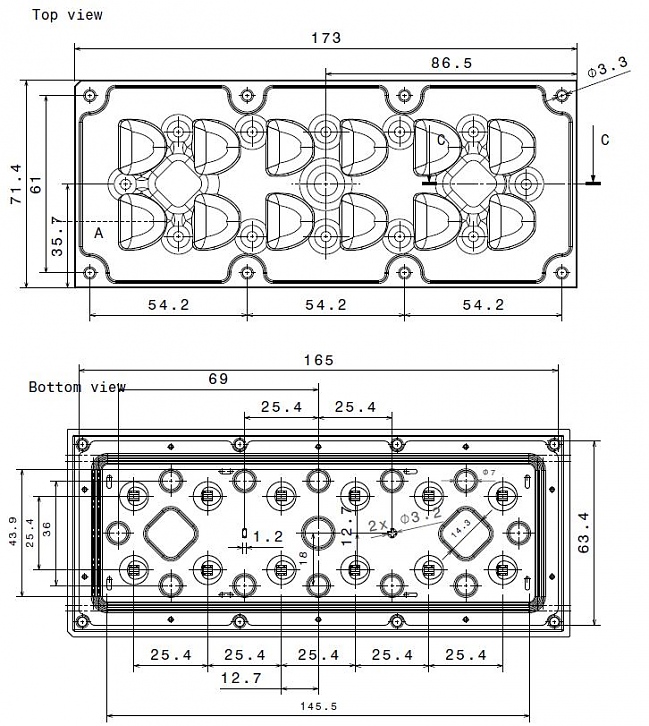

   12XTE Strada module with LEDs of the latest generation from the top chip producers in the world – CREE and SAMSUNG achieve maximum efficiency values. The modules have been specifically developed on high thermoconductive aluminium plate with extra thick copper. The product range covers colour temperatures Warm White 3000K, Neutral White 4000K, Cold White 5000K and 6000K and module efficiency of up to 175 lm/W. The module is driven by constant current. The design is improved for simple installation. The module covers three types of LEDs for most applications. This LED engine is compatible with LEDIL lenses family Strada – with the different angles to achieve all types of distortions. There is an optional thermistor for temperature control and TVS for extra overvoltage protection.

Benefits:

• Ideal for industrial and outdoor lightning
• Luminous flux range from 1600 lm – 9000 lm
• Efficacy of the module up to 175 lm/W
• Small colour tolerance (MacAdam 3)
• Small luminous flux tolerances
• Colour temperatures from 4000 K to 6500 K
• Lenses with various angles available
• Optional thermoresistor for protection and/or measurement
• Optional TVS protection
• Simple installation (e.g. screws)
• Long life-time: >50,000 hours



 Technical Specification:

12XTE Strada	Color Temperature K	Typ. luminous flux at tj = 25 °C	Typ. Voltage at tj =25 °C	Typ. power consumption at tj = 25 °C	Luminous efficacy module at tj = 25 °C	Colour rendering index CRI
Cree XT-E  High Efficiency  @ 350mA	4000 K	1680 Lm	34.2 V	11.97 W	140 Lm/W	>80
	5000 K	1776 Lm	34.2 V	11.97 W	148 Lm/W	>80
	6000 K	1896 Lm	34.2 V	11.97 W	158 Lm/W	>80
Cree XT-E High Output  @ 800mA	4000 K	3592 Lm	37 V	29.6 W	121 Lm/W	>80
	5000 K	3798 Lm	37 V	29.6 W	128 Lm/W	>80
	6000 K	4054 Lm	37 V	29.6 W	137 Lm/W	>80
Samsung LH351A High Efficiency  @ 350mA	4000 K	1560 Lm	35.5 V	12.42 W	126 Lm/W	>80
	5000 K, 5700 K, 6500 K	1776 Lm	35.5 V	12.42 W	135 Lm/W	>80
Samsung LH351A High Output  @ 700mA	4000 K	2844 Lm	37 V	25.9 W	110 Lm/W	>80
	5000 K, 5700 K, 6500 K	3048 Lm	37 V	25.9 W	118 Lm/W	>80
Cree XP-L High Efficiency  @ 500mA	4000 K, 5000 K, 6000 K	2970 Lm	33.5 V	16.74 W	175 Lm/W	>80
Cree XP-L  High Output @ 2000mA	4000 K, 5000 K, 6000 K	9623 Lm	37.9 V	75.8 W	127 Lm/W	>80
